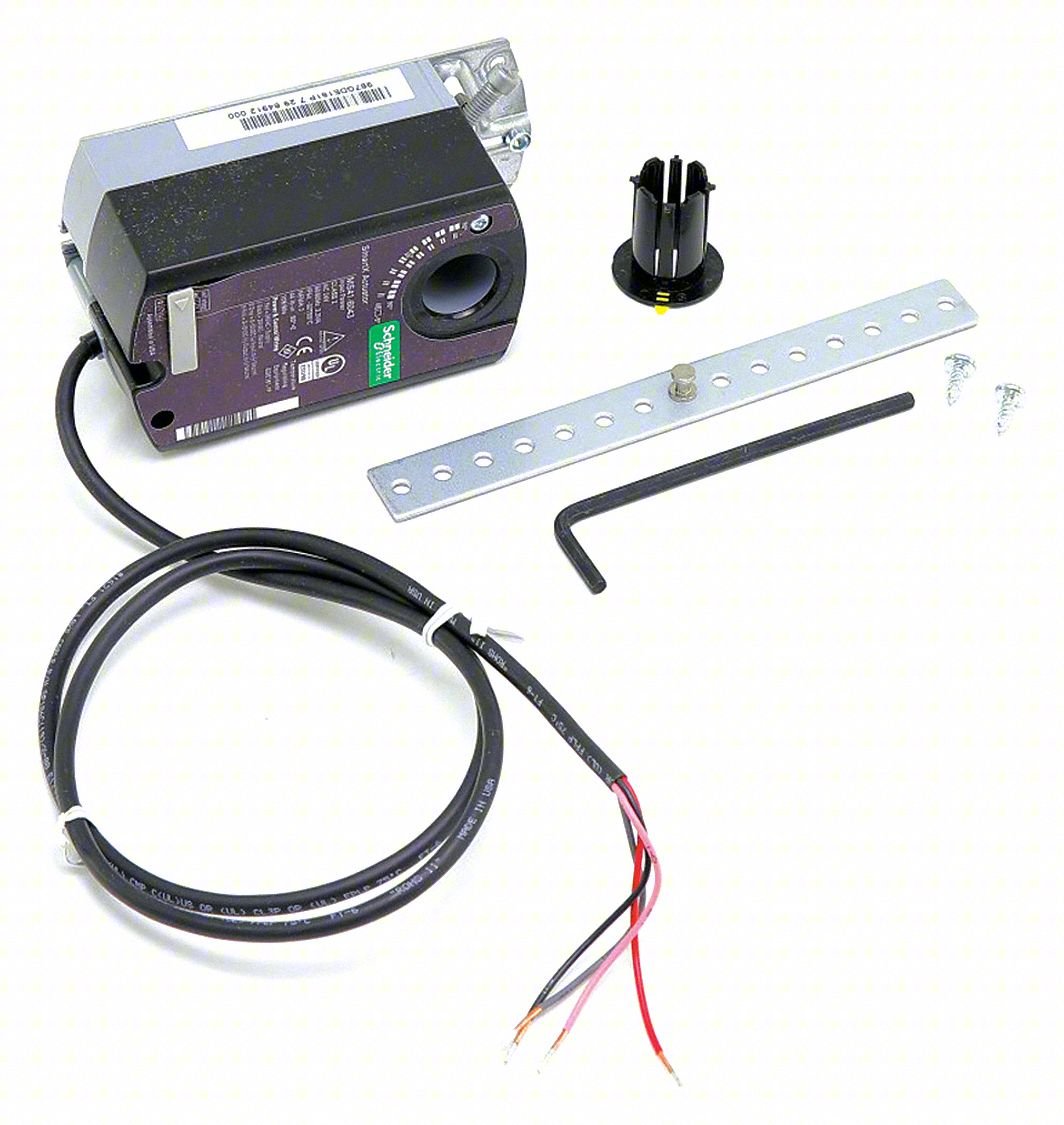

Electric Actuator,24V,35lb-in,0 to 10VDC

ACTUATOR, VALVE APPLICATION DAMPER, RATED TORQUE 44 LB-IN, INPUT VOLTAGE 24V AC, OUTPUT SIGNAL 0 TO 10V DC, ELECTRICAL CONNECTION TYPE HARDWIRED, NEMA RATING 2, IP RATING IP54, SPRING RETURN NON-SPRING RETURN, TIME TO CLOSE 150 SEC, SHAFT ROTATION CW/CCW, STROKE DEGREE 90 DEGREES ; 95 DEGREES , MOUNTING TYPE DIRECT MOUNT, MAXIMUM OPERATING TEMPERATURE 130 DEGREES F, MINIMUM OPERATING TEMPERATURE -25 DEGREES F, WEIGHT 1.06 LB, OVERALL WIDTH 2 3/4 IN, APPLICATION DAMPERS

• Manufacturer: SCHNEIDER
• Mfg Part Number: MS41-6043
• Country of Origin: UNITED STATES OF AMERICA
• TAA Compliant: Yes
• Unit of Issue: EA
• Lead Time: 5 days
