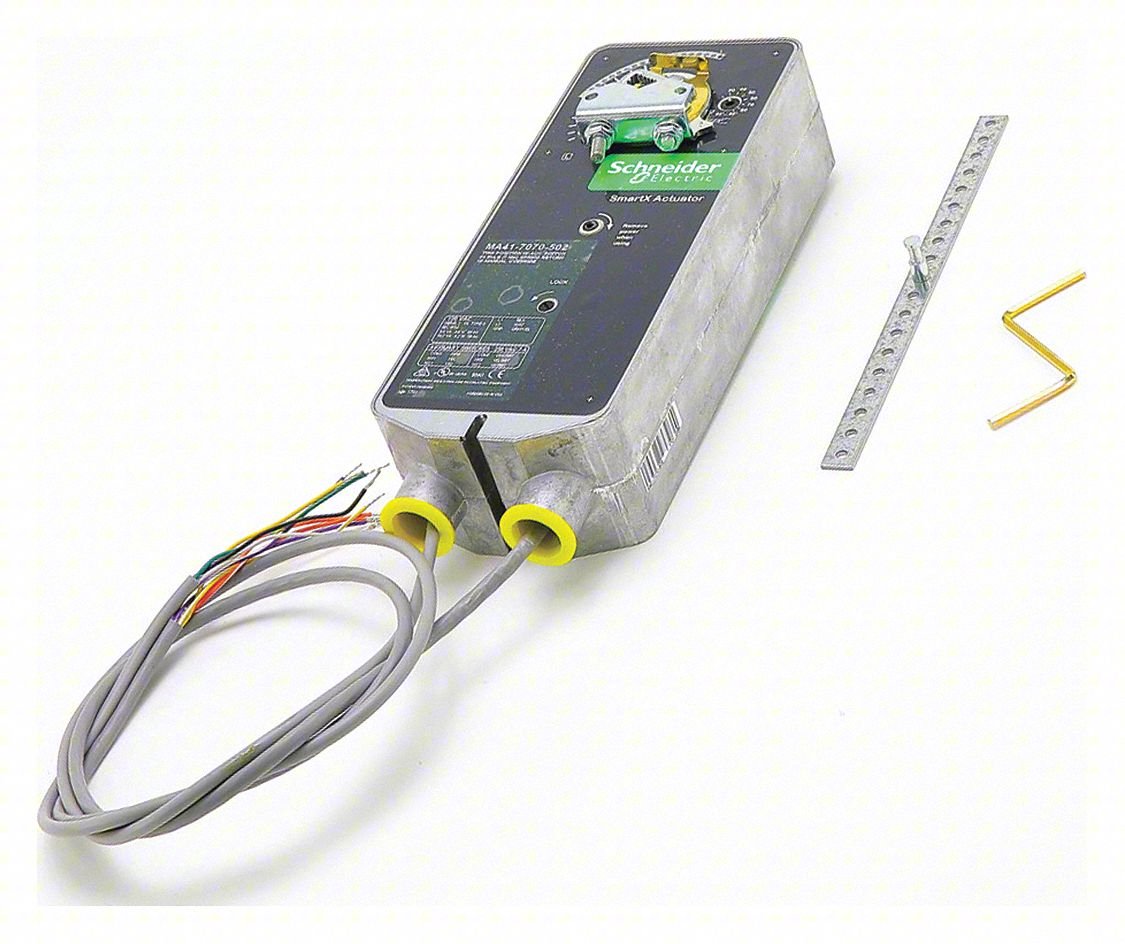

Electric Actuator,120V,60 lb.-in.
$723.24per each
TAA/BAA Approved
In Stock - Ready to Ship
Quantity
Order Summary
1 each
1 × $723.24Total$723.24
Fast Shipping
Same-day dispatch
ANSI Certified
Meets standards
Easy Returns
30-day policy
TAA/BAA Approved
Government compliant
DAMPER ACTUATOR, VALVE APPLICATION VALVE, RATED TORQUE 60 LB-IN, INPUT VOLTAGE 120V AC, OUTPUT SIGNAL 2 TO 10V DC, CONTACT FORM SPST, ELECTRICAL CONNECTION TYPE HARDWIRED, NEMA RATING 2, IP RATING IP54, SPRING RETURN SPRING RETURN, SHAFT TYPE DAMPER SHAFT, SHAFT ROTATION CW/CCW, STROKE DEGREE 95 +/- 5 DEGREES , MOUNTING TYPE DIRECT MOUNT, MAXIMUM OPERATING TEMPERATURE 140 DEGREES F, MINIMUM OPERATING TEMPERATURE 22 DEGREES F, OVERALL WIDTH 4 IN, FOR SHAFT SHAPE ROUND, SQUARE
- Manufacturer: SCHNEIDER
- Mfg Part Number: MA41-7070-502
- Country of Origin: UNITED STATES OF AMERICA
- TAA Compliant: Yes
- Unit of Issue: EA
- Lead Time: 10 days
